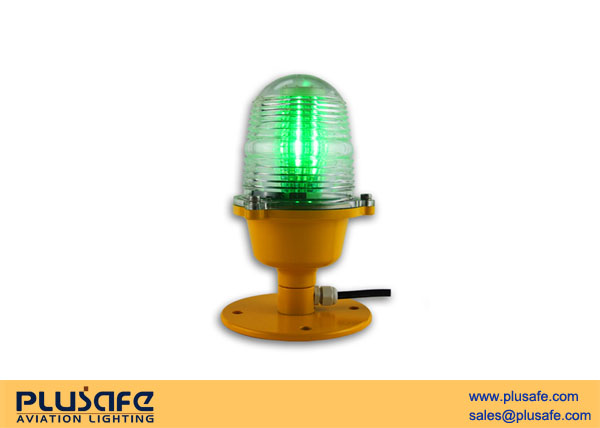

HL51 LED Green Helipad Perimeter Light

View large
  • Category:
  • Elevated Mounted for FATO/TLOF Zone Marking,Green LED less than 5W,≤25cm In Height,Casting Aluminum Alloy Housing,UV Stabilized Aviation Yellow Painting,ICAO Annex14,Volume II Compliant....
    Product Description
    Heliport Perimeter Light is used for night operation. To use omnidirectional green perimeter light lighten the heliport TLOF/FATO edge area.
    TLOF lighting system always consist of elevated/flush perimeter lights and floodlighting.
    Custom solutions is available like operation voltage, color white, yellow, blue, red.

    Compliance
    - ICAO Annex 14, Volume II, 4th Edition, July,  2013
    - FAA  AC150/5390-2C
    - CAP 437;Offshore helicopter landing areas; Feb 2013

    Features
    •  Casting aluminum alloy strong body.
    •  No more than 25cm in height meet international standard.
    •  Rating IP65.
    •  Frangible coupling included in flange base.
    •  Polycarbonate lens very good impact resistance.
    •  Light source using high power LED with an expectancy lifespan 100,000 hours.
    •  Built in surge protection device, can be used in the harsh environment.

    Application
    •  Heliports
    •  Surface Heliports
    •  Elevated Heliports
    •  Offshore
    •  Airfield Lighting.

    Data Sheet
    HL-51 Data Sheet
