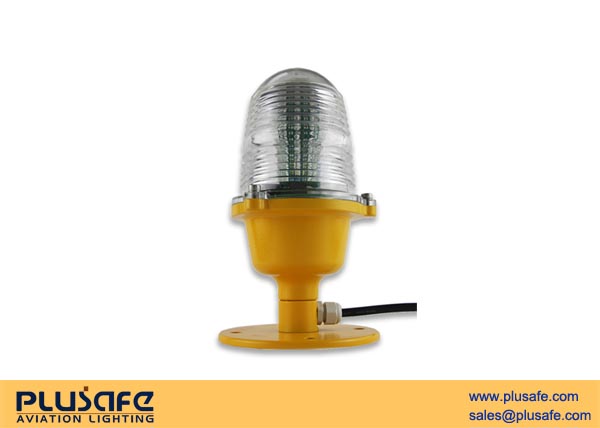

HL51-X is a LED design used for helipad taxiway edge marking, runway or taxiway centerline, approach path or landing direction markings.
Custom solutions is available like operation voltage, color white, yellow, blue, red.
Compliance
- ICAO Annex 14, Volume II, 4th Edition, July, 2013
- FAA AC150/5390-2C
Features
• Casting aluminum alloy strong body.
• No more than 25cm in height meet international standard.
• Rating IP65.
• Polycarbonate lens very good impact resistance.
• Light source using high power LED with an expectancy lifespan 100,000 hours.
• Built in surge protection device, can be used in the harsh environment.
Heliport Applications
· Surface-level ground heliport
· Rooftop&Elevated heliport
· Shipyard&Shipboard
Technical Parameter
|
|
|
Light Characteristics |
|
International standard |
ICAO Annex14 Volume II; Heliports; |
|
FAA AC150/5390-2C |
|
Light source |
High Efficiency LEDs |
|
Color |
Blue,White,Yellow or other both available |
|
Lifespan of LED |
100,000 hours |
|
Light intensity |
30cd |
|
Flash frequency |
Steady |
|
Electrical Characteristics |
|
Operating Mode |
220V AC; 48V DC |
|
Power |
5W |
|
Consumption |
|
Physical Characteristics |
|
Body/Base Material |
Casting Aluminum |
|
Lens Material |
Polycarbonate UV stabilized,good impact resistance |
|
Overall Dimension(mm) |
Φ135mm×250mm |
|
Mounting Method |
4×9mm hubs |
|
Weight(kg) |
1.5kg |
|
Environmental Factors |
|
Ingress Grade |
IP65 |
|
Temperature Range |
-40℃ to 60℃ |
|
Wind Speed |
80m/s |
|
Quality Assurance |
ISO9001:2008 |
*Specifications subject to change or variation without notice.
