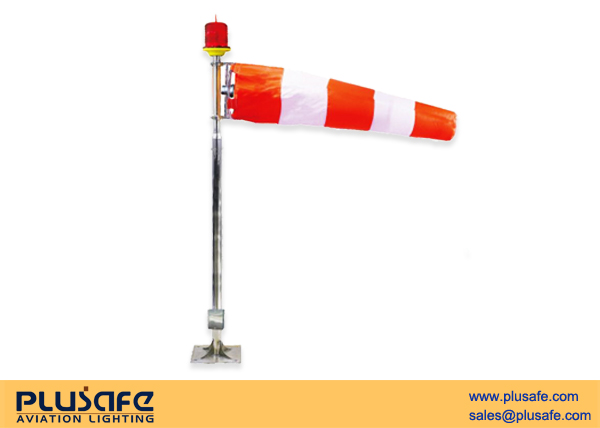

HLLW-I Internal Illuminated Heliport Windsock

View large
  • Category:
  • 304 Stainless Steel Pole, 2m to 7m height available, external L810 Red Obstruction Light and internal LED lamp for Illumination, ICAO Annex 14 Volume II Compliant ...
    Product Description
    Lighted vane can indicate the wind direction in the ultimate approach and take off area and make a general indication on the wind speed.
    For the installation locate, it must not be intervened by the nearby object or airflow blew by the rotary wing and can be seen from the helicopter from the air.
    Custom solutions is available like height, vane size/color.

    Data Sheet
    Data Sheet LED Helipad Lighted Windsock

    Compliance
    - ICAO Annex 14, Volume II, 4th Edition, July,  2013
    - FAA AC150/5345-27C

    Features
    •  Standard SS304L for mast and frame, SS316L optional for very corrosion environment.
    •  All fittings are made of stainless steel like base, heavy rotation bearings.
    •  Rating IP65.
    •  2 meters to 7 meters pole in height available.
    •  3 size of vanes: 30cm in bigger mouth; 45cm in bigger mouth; 60cm in bigger mouth.
    •  1 of red LED L810 fixed red obstruction light and 1 internal LED lamp for internal illumination.
    •  Waterproof socks colors available aviation orange, white-red, orange-white or others.
    •  Operation voltage for illumination part is 220VAC, 50HZ.
    •  Junction box included
    •  Wind speed max load design 260kph.

    Application

    •  Heliports
    •  Surface Heliports
    •  Elevated Heliports
    •  Aerodrome
