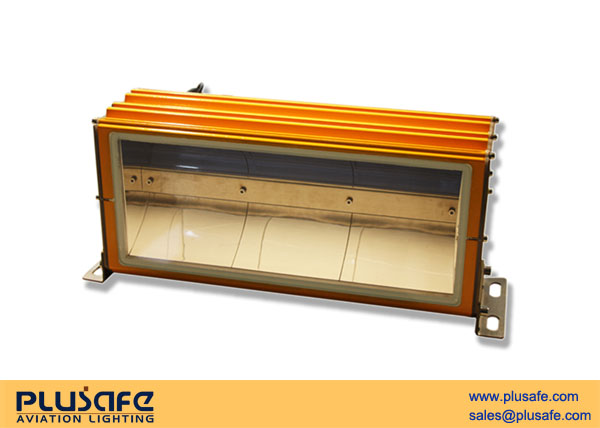

LED White High Intensity Obstruction Light

View large
FAA L-856/L-857 Type, ICAO High Intensity Type A/B, White flashing 40~60 FPM All Day, 200,000cd Light Intensity Model, Reflective Lens Design, UV Stabilized Housing,IP65,ICAO&FAA Compliant...
Product Description
· ICAO Annex 14, Volume I, 6th Edition, July,  2013
· ICAO Aerodromes Design Manual, Chapter 18
· FAA  AC150/5345-43G
· FAA Engineering Brief 67 Specifications
· Certified to ICAO compliant by Intertek
Types Compliant:
· ICAO high intensity Type A
· ICAO high intensity Type B
· FAA L-856 type
· FAA L-857 type

 Preferable Applications

Data Sheet:
Data Sheet L-856/L-857 White High Intensity Obstruction Light

•  Automatically light intensity change program from day, twilight and nighttime.
•  Photo sensor device included.
•  LED technology to realize costing solutions and also compliance to ICAO&FAA.
•  Control panel for the lights synchronized flashing, failure alarm control.
•  Aluminum alloy body with tempered glass for lens cover.
•  Optic reflector design makes beams more concentrate, effective and further.
•  Built in surge protection device, can be used in the harsh environment.
•  GPS synchro function available.
•  CAAC full test and approval.
•  ICAO approval.

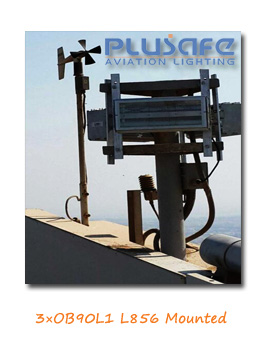

•  High-rise building marking above 150meters
•  Telecom & broadcast
•  Bridge
•  Navigation aid
•  Port
•  Power plant
•  Wind power
•  Crane machines
•  Airfield lighting

Technical Parameter
Light  Characteristics
International standard ICAO  Annex14 Volume I;Chapter6
FAA  AC150/5345-43G L856
Light source LED (Efficiency 100LM/W)
Color White
Lifespan of LED 100,000 Hours
Light intensity Compliance to ICAO  Annex14&FAA photometric;
200,000cd average above at daytime, 20,000cd average above at twilight,2000cd average above at nighttime.
Photo sensor  50 to 500Lux
Flash  frequency 40 to 60 fpm Default 40 fpm)
Vertical Angle
Electrical Characteristics
Operating Mode 220V AC; 48V DC available
Power Consumption 100W
Physical Characteristics
Body/Base Material Casting Aluminum, aviation yellow powder coating
Lens  Material Tempered glass
Overall Dimension(mm) 470mm ×202mm×134mm
Mounting Dimension(mm) 445×70 - 4×M10
Weight(kg) 10kg
Environmental Factors
Ingress Grade IP65
Temperature Range -40℃ to 55℃
Wind  Speed 80m/s
Quality Assurance ISO9001:2008, CAAC Approval
*Specifications subject to change or variation without notice.
