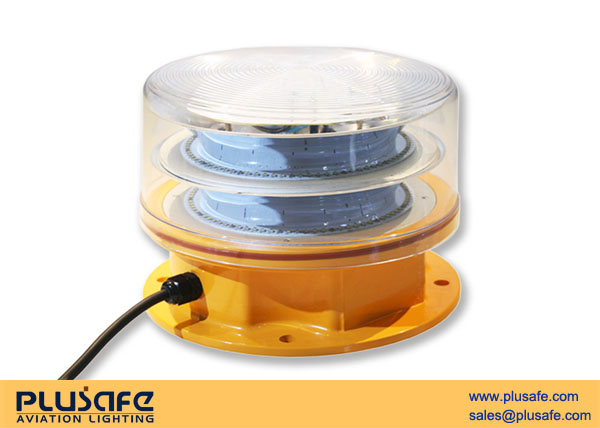

LED White Flashing Medium Intensity Obstruction Light

View large
ICAO Medium Intensity Type A, White Flashing All Day, 2000cd Light Intensity nighttime and 20,000cd at daytime, Reflective Lens Design, UV Stabilized Casting Aluminum Alloy Housing,IP66,Failure Monitor With Control Panels, Improve the Conspi...
Product Description
Compliance&Approval:
· ICAO Annex 14, Volume I, 6th Edition, July, 2013
· ICAO Aerodromes Design Manual, Chapter 18
· FAA AC150/5345-43G
· FAA Engineering Brief 67 Specifications
· Certified to ICAO compliant by Intertek

Applications:
· ICAO medium intensity type A
· FAA L-865 type
· FAA L-866 type

Data Sheet
Data Sheet L-865 LED Flashing White Medium Intensity Type A OB Light
Advantages:
· ICAO Approval.
· Portable and lightweight, easy transportation.
· Fixture can be used with 100V~250V AC, 50Hz or 60Hz.
· LED low power consumption only 30 Watts average.
· Internal single chip computer control smart and reliable.
· Surge protection device integrated in the light.

This is a white flashing aviation obstruction light made of casting aluminum material.
It is used increase conspicuity of structures or obstructions during day&nighttime.
Also,  with strong metal body, the light is easy to deploy to almost any condition and any emerge.
Robust body built provides good protection against hash environments.
It is working under flash mode based ICAO&FAA requirement. Users can specify steady burning / 12 hours flashing mode for purchase requirement.

Locations

•  High-rise building marking
•  Telecom & broadcast
•  Bridge
•  Navigation aid
•  Port
•  Power plant
•  Wind power
•  Crane machines
•  Airfield lighting

Technical Parameter

Light  Characteristics
International standard ICAO  Annex14 Volume I;Chapter6
FAA  AC150/5345-43G L865
Light source LED
Color White
Lifespan of LED 100,000hours (decay<20%)
Light intensity Compliance to ICAO  Annex14 photometric;
20000cd average above at daytime, 2000cd average above at nighttime
Photo sensor  100Lux
Flash  frequency 40 to 60 fpm Default 40 fpm)
Vertical Angle
Electrical Characteristics
Operating Mode 110V  to 240V  AC; 24V  to 55V  DC available
Power Consumption 30W
Physical Characteristics
Body/Base Material Casting Aluminum, aviation yellow painted
Lens  Material Polycarbonate, UV stabilized,
good impact resistance
Overall Dimension(mm) φ268mm ×206mm
Mounting Dimension(mm) 166×166-4×φ12mm
Weight(kg) 6kg
Environmental Factors
Ingress Grade IP65
Temperature Range -55℃ to 60℃
Wind  Speed 80m/s
Quality Assurance ISO9001:2008
*Specifications subject to change or variation without notice.
