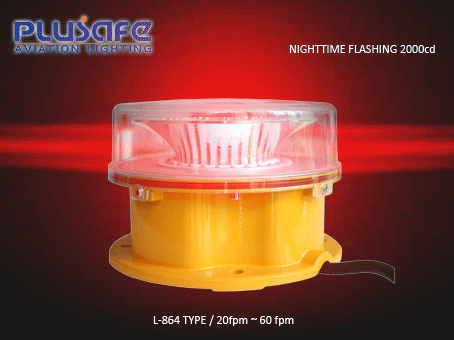

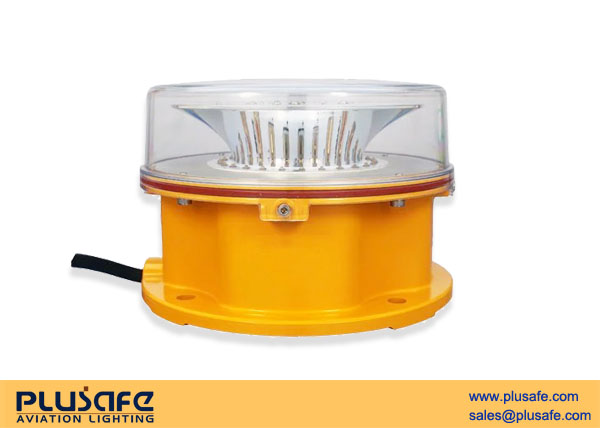

LED L864 Red Flashing Obstruction Beacon

View large
FAA L864 Type/ICAO Medium Intensity Type B, Red flashing 20~60 FPM At Nighttime, 2000cd Light Intensity Model, Reflective Lens Design, UV Stabilized Housing,IP66,ICAO Approval...
Product Description
Compliance&Approval:
· ICAO Annex 14, Volume I, 6th Edition, July,  2013
· ICAO Aerodromes Design Manual, Chapter 18
· FAA  AC150/5345-43G
· FAA Engineering Brief 67 Specifications
· Certified to ICAO compliant by Intertek

Types Compliant:
· ICAO medium intensity type B
· ICAO medium intensity type C
· FAA L-864 type

Preferable Applications

•  Buildings
•  Power Towers
•  Wind Power
•  Chimney&Power Plant
•  Cranes
•  Aerodrome

Data Sheet
Data Sheet L-864 Red Medium Intensity Obstruction Beacon

Compliance
- ICAO Annex 14, Volume I, 6 Edition, July,  2013
- FAA  AC150/5345-43G L864

Features
•  DC or AC wide range operating voltage 110V to 250V AC, 24V to 55V DC.
•  Portable structure, very easy to mounting.
•  Cast aluminum base and painted.
•  Polycarbonate lens of strong impact resistance, good light transmission.
•  Optic reflector design makes beams more concentrate, effective and further.
•  24 LEDs with an expectancy lifespan 100,000 hrs above and lower consumption.
•  Built in surge protection device, can be used in the harsh environment.
•  GPS synchro function available.
•  Certified to ICAO compliant by intertek.

Application
•  High-rise building marking
•  Telecom & broadcast
•  Bridge
•  Navigation aid
•  Port
•  Power plant
•  Wind power
•  Crane machines
•  Airfield lighting

Power Supply Option
•  Solar power supply

How Does It Works


Technical Parameter

Light  Characteristics
International standard ICAO  Annex14 Medium Intensity Type B
FAA  AC150/5345-43G L864
Light  source LED
Color Red
Lifespan of LED 100,000hours (decay<20%)
Light  intensity Compliance to ICAO  Annex14 photometric; 2000cd
Photo sensor  50Lux
Flash  frequency 20 to 40 fpm
Vertical Angle
Electrical Characteristics
Operating Mode 110V  to 240V  AC; 24V DC, 48V DC available
Power Consumption 10W
Physical Characteristics
Body/Base Material Casting Aluminum, aviation yellow painted
Lens  Material Polycarbonate UV stabilized,good impact resistance
Overall Dimension(mm) φ210mm ×140mm
Mounting Dimension(mm) 126×126-4×φ11mm
Weight(kg) 3kg
Environmental Factors
Ingress Grade IP65
Temperature Range -55 to 55
Wind  Speed 80m/s
Quality Assurance ISO9001:2008
*Specifications subject to change or variation without notice.
