Compliance&Approval:
· ICAO Annex 14, Volume I, 6th Edition, July, 2013
· ICAO Aerodromes Design Manual, Chapter 18
· FAA AC150/5345-43G
· FAA Engineering Brief 67 Specifications
· Type B Certified to ICAO compliant by Intertek
Types Compliant:
· ICAO medium intensity type B
· ICAO medium intensity type C
· FAA L-864 type
Preferable Applications
• Buildings
• Power Towers
• Wind Power
• Chimney&Power Plant
• Cranes
• Aerodrome
• DC or AC operating voltage.
• Portable structure, very easy to mounting.

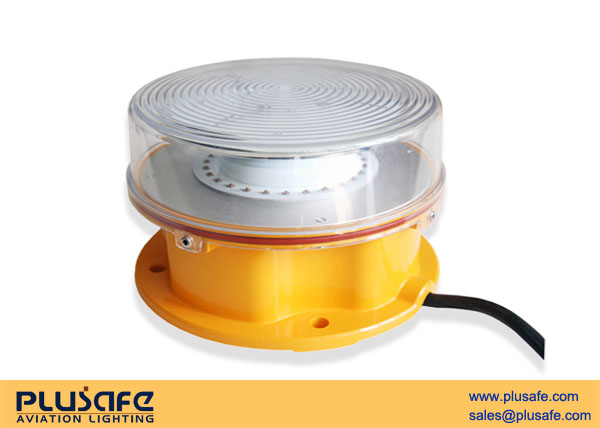

• Cast aluminum base and aviation yellow painted.
• Polycarbonate lens of strong impact resistance, good light transmission.
• Optic reflector design makes beams more concentrate, effective and further.
• 24 LEDs with an expectancy lifespan 100,000 hrs above and lower consumption.
• Built in surge protection device, can be used in the harsh environment.
Application
• High-rise building marking
• Telecom & broadcast
• Bridge
• Navigation aid
• Port
• Power plant
• Wind power
• Crane machines
• Airfield lighting
Power Supply Option
• Solar power supply
How Does It Works
Technical Parameter
|
Light Characteristics |
|
International standard |
ICAO Annex14 Volume I;Chapter6 |
|

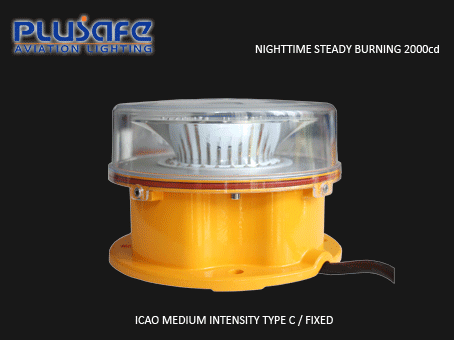

Medium Intensity Type C |
|
Light source |
LED |
|
Color |
Red |
|
Lifespan of LED |
100,000hours (decay<20%) |
|
Light intensity |
Compliance to ICAO Annex14 photometric; 2000cd |
|
Photo sensor |
50Lux |
|
Flash frequency |
Fixed |
|
Vertical Angle |
4° |
|
Electrical Characteristics |
|
Operating Mode |
110V to 240V AC; 24V DC, 48V DC available |
|
Power Consumption |
15W |
|
Physical Characteristics |
|
Body/Base Material |
Casting Aluminum, aviation yellow painted |
|
Lens Material |
Polycarbonate UV stabilized,good impact resistance |
|
Overall Dimension(mm) |
φ210mm ×140mm |
|
Mounting Dimension(mm) |
126×126-4×φ11mm |
|
Weight(kg) |
3kg |
|
Environmental Factors |
|
Ingress Grade |
IP66 |
|
Temperature Range |
-55℃ to 55℃ |
|
Wind Speed |
80m/s |
|
Quality Assurance |
ISO9001:2008 |
*Specifications subject to change or variation without notice.
